ArcGIS Pro: Using the WhiteStar Legal Mapper Add-in V2.0.1

Marketing WhiteStar


ArcGIS Pro


Download the WhiteStar Legal Mapper Add-In for ArcGIS Pro.


  1. Exit ArcGIS Pro if it’s running.

  2. Double-click WhiteStarLegalMapper.esriAddinX.

  3. Click Install Add-In on the confirmation dialog box.

  4. Launch ArcGIS Pro.

Sign in

Use your WhiteStar Cloud account credentials.


  1. Open a map, or insert a new one

  2. Select geometry type (WellSpotter for points or LeaseBuilder for polygons).

  3. Enter a Legal Land Description in the Legal Land Description edit box.

    1. Multiple Legal Land Descriptions may be entered.

    2. Unique user identification can be entered into the Id box.

  4. Press ‘Process’.

arcgisPro v2 image.png

BUILD and load THE INPUT DATA FILE for batch processing

Your legal land descriptions could come from anywhere, a database or a spreadsheet.  However in this example we use notepad to build a simple CSV file named legals.csv.  The first line contains the identifying attribute names id and legal.  Id is a unique identifier for each legal description used to merge in other data in later steps if so desired.  In the field, these IDs (lease numbers, etc) are often alphanumeric, but we will use a simple positive integer.

footage calls.png

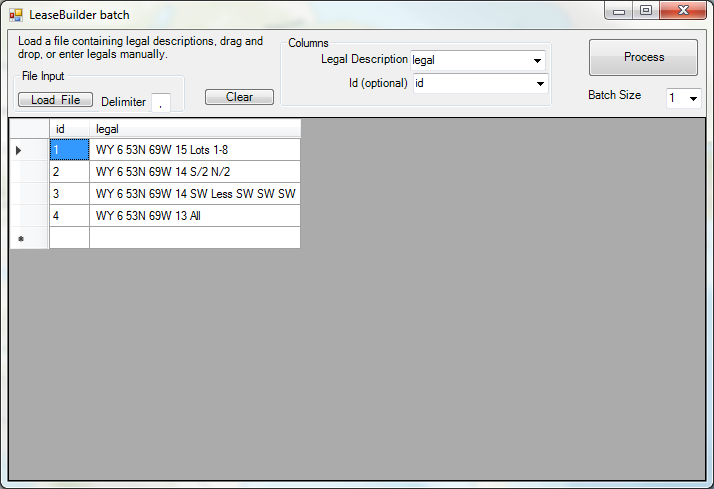

  1. Select geometry type (WellSpotter for points or LeaseBuilder for polygons).

  2. Click ‘Load File’ button or drag and drop legals.csv into the LeaseBuilder batch form.

  3. Under Columns Set the Legal Description column to ‘legal’ and the Id (optional) column to ‘id’.

arcgisProv2 usage.png

4.  Click ‘Process’.
